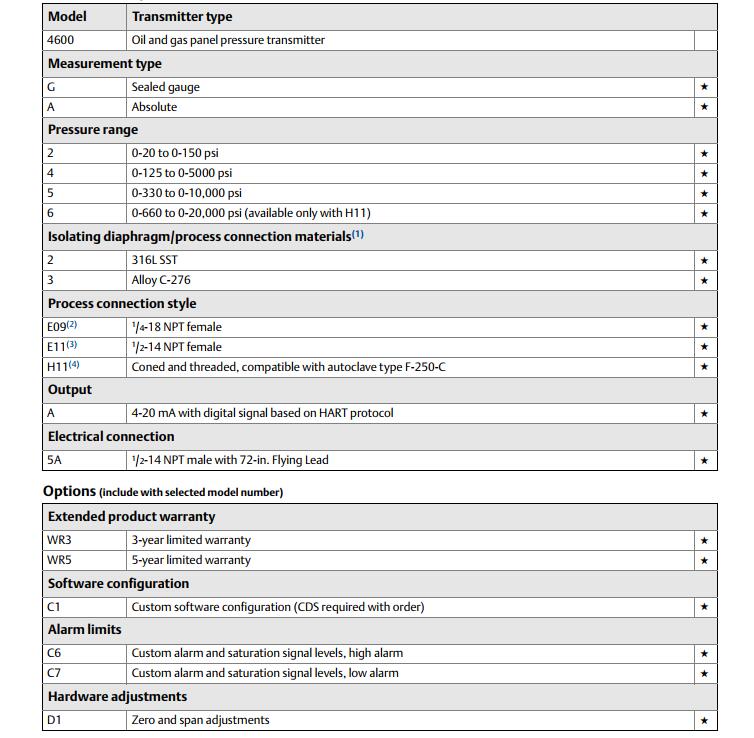

Basic Diagnostics Rosemount™ 4600 G 4 2 E11 A 5A WR5 D1 Pressure Transmitter Up to 20,000 psia (1379 bar) absolute
Ideal for panel mount applications, the Rosemount 4600 Oil and Gas Panel Pressure Transmitter delivers reliable, industry-standard performance. This pressure transmitter is capable of measuring high pressure ratings of up to 20000 psi (1379 bar) and offers a rangedown of up to 40:1 for increased flexibility. Additionally, this device features a compact, lightweight design with an all-welded, stainless steel construction, providing a stable and robust solution that withstands harsh environments.
Specifications
| Warranty | Up to 5-year limited warranty |
| Rangedown | Up to 40:1 |
| Communication Protocol | 4-20 mA HART® |
| Measurement Range | Up to 20,000 psig (1379 bar) sealed gage, Up to 20,000 psia (1379 bar) absolute |
| Process Wetted Material | 316L SST, Alloy C-276 |
| Diagnostics | Basic Diagnostics |

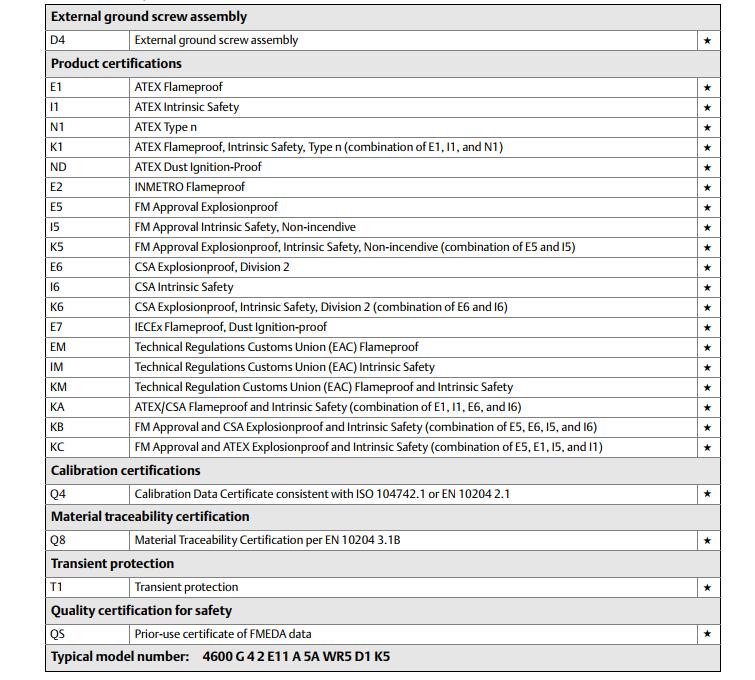

| Certifications/Approvals | NACE®, hazardous location, see full specs for complete list of certifications |
| Process Wetted Material | 316L SST, Alloy C-276 |
| Diagnostics | Basic Diagnostics |
| Certifications/Approvals | NACE®, hazardous location, see full specs for complete list of certifications |
- Measures high pressure ratings of up to 20000 psi (1379 bar) for a stable and dependable solution
- Compact, lightweight design is ideal for panel mount applications
- All-welded stainless steel construction maximizes reliability in harsh environments
- Up to 40:1 rangeability increases application flexibility
- Installed 3-year stability of ± 0.5% of URL minimizes maintenance costs and improves efficiency
Performance specifications
For zero-based spans, reference conditions, silicone oil fill, SST materials, 1/2-in.–14 NPT process connections, digital trim values set to equal range points. Does not include any error due to the effects of sealed gauge.
Conformance to specification (±3 Sigma)
Technology leadership, advanced manufacturing techniques and statistical process control ensure specification conformance to at least ±3 sigma.
Reference accuracy
Includes the effects of terminal based linearity, hysteresis, and repeatability.
Range 2: ±0.25% of calibrated span from 1:1 to 7.5:1 rangedown
Range 4: ±0.25% of calibrated span from 1:1 to 40:1 rangedown
Range 5: ±0.25% of calibrated span from 1:1 to 30:1 rangedown
Range 6: ±0.25% of calibrated span from 1:1 to 30:1 rangedown
Long term stability
0.5% of span for three years under normal operating conditions
Vibration effect
Less than ±0.1% of URL when tested per the requirements of IEC 60770.84 pipeline (general and extreme vibration level) (10-60 Hz 0.21mm peak to peak displacement/60-2000 Hz 3g).
Electromagnetic Compatibility (EMC)
Meets all relevant requirements of EN 61326
Transient protection (Option T1)
Meets IEEE C62.41, Category B
6 kV crest (0.5 μs - 100 kHz)
3 kA crest (8 20 microseconds)
6 kV crest (1.2 50 microseconds)
Meets IEEE C37.90.1, Surge Withstand Capability
SWC 2.5 kV crest, 1.25 MHz wave form
General Specifications:
Response Time: < 1 nanosecond
Peak Surge Current: 5000 amps to housing
Peak Transient Voltage: 100 V dc
Loop Impedance: < 25 ohms
Applicable Standards: IEC61000-4-4, IEC61000-4-5 N
