Mitsubishi Servo Amplifier MR-J4-70A Industrial Servo Drives AC200 V ~ 240 V, 50 Hz / 60 Hz

Mitsubishi Servo Amplifier MR-J4-70A Industrial Servo Drives AC200 V ~ 240 V, 50 Hz / 60 Hz

Product Specifications:

• Series name : MELSERVO-J4 series

• Command interface : General-purpose interface

• Voltage class : 200V

• Motor rated output [KW] : 0.75

• Servo amplifier form name : MR-J4-70A

• Rated current [A] : 5.8

• Voltage and frequency (Note 1) : Three-phase or single-phase AC200 V ~ 240 V, 50 Hz / 60 Hz

• Rated current (Note 14) [A] : 3.8

• Allowable voltage fluctuation : Three-phase or single-phase AC170 V ~ 264 V

• Allowable frequency fluctuation : Within ± 5%

• Voltage and frequency : Single-phase AC200 V ~ 240 V, 50 Hz / 60 Hz

• Rated current [A] : 0.2

• Allowable voltage fluctuation : Single-phase AC170 V ~ 264 V

Environmental condition :

Ambient temperature : Operation: 0 ° C ~ 55 ° C (no freezing), storage: -20 ° C ~ 65 ° C (no freezing)

Ambient humidity : Operation / storage: 90% RH or less (non-condensing)

Atmosphere : Indoors (no direct sunlight), that there is no corrosive gas, flammable gas, oil mist, dust and dirt

elevation : Above sea level 2000 m or less (Note 18)

Vibration resistance : 5.9 m / s 2, 10 Hz ~ 55 Hz (X, Y, Z each direction)

Safe performance :-

Third party certification standards : EN ISO 13849-1 Category 3 PL e, IEC 61508 SIL 3, EN 62061 SIL CL 3, EN 61800-5-2 (Note 20)

Response performance : 8 ms or less (STO input off → energy cut-off)

Test pulse input (STO) (Note 7) : Test pulse interval: 1 Hz ~ 25 Hz, test pulse off time: Up to 1 ms

Expected average dangerous failure time (MTTFd) : MTTFd ≧ 100 [year] (314a)

Diagnostic coverage (DC) : DC = medium (Medium), 97.6 [%]

The average probability of a dangerous failure (PFH) : PFH = 6.4 × 10 -9 [1 / h]

Overseas Compliance : The correspondence to the international standards and laws

Structure (protection grade) :- : A little over cold, open (IP20)

Terms:
We ships worldwide and accepts T/T and Paypal.
All items are subject to availability and passing our QA testing and inspection.
Turnaround Time:
Standard order processing is 1-2 business days plus shipping method chosen.
Rush and off-hours service available for an additional fee
Packaging and Handling:
Items are safely packaged in custom shipping cartons for protection.
Shipping:
We ship worldwid use UPS, FedEx, DHL, or Truck Freight when needed.
Call to use a shipping service other than the ones listed.
International Customers are responsible for all Customs fees, VAT, and other fees applied by their
respective countries.
All shipments are fully insured.

electric servo drive

ac servo drive

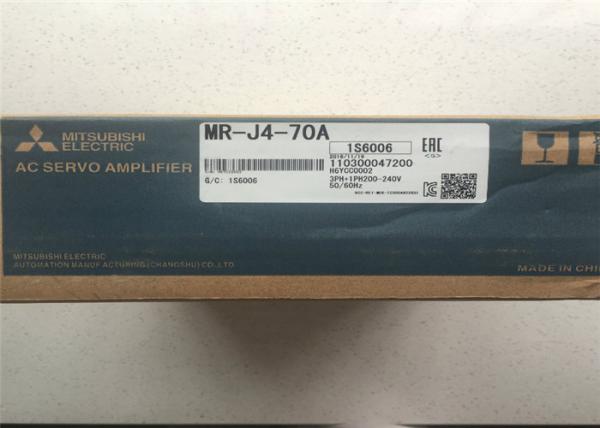

Mitsubishi Servo Amplifier MR-J4-70A Industrial Servo Drives AC200 V ~ 240 V, 50 Hz / 60 Hz Images
