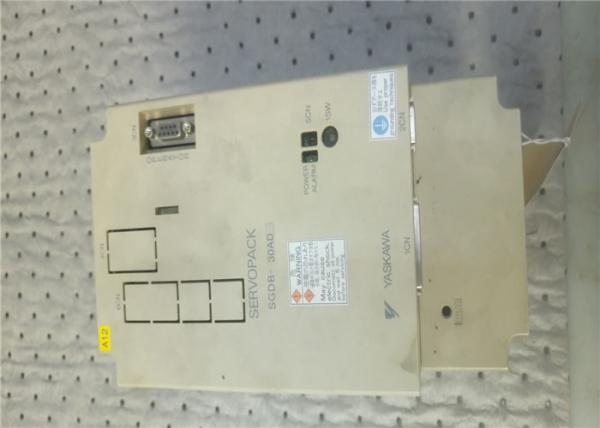

Industrial Servopack Yaskawa 3.08KW Servo Drive Input 18.0 AMPS 50/60hz SGDB-30AD

Industrial Servopack Yaskawa 3.08KW Servo Drive Input 18.0 AMPS 50/60hz SGDB-30AD

Product number: SGDB-30AD
Description: SGDB-30AD is an Drives-AC Servo
Drive Type: SGDB AC Servo Drive
Rated Output: 3.0kW
Supply Voltage: 200V
Model: Torque, Speed, Position Control
Applicable motor series: SGM
Option Specifications: None
Modification: None

The SGDB Sigma Series Servopacks are Amplifiers for the Sigma Series of AC Servos. Designed for applications requiring multi-drives, the SGDB can be used for speed control, torque control, and position control. A digital operator can be used to set parameters for a Servopack.

Features
230VAC Three-Phase Input Power
Accepts an Analog Voltage Speed Reference
Three Internally Set Speeds
Compact Design
Easy Operation

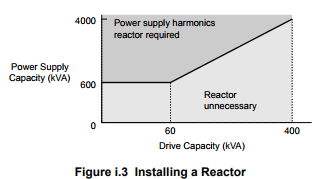

An AC reactor or DC link choke can be used for the following:
• to suppress harmonic current.
• to smooth peak current that results from capacitor switching.
• when the power supply is above 600 kVA.
• when the drive is running from a power supply system with thyristor converters.
Note: A DC link choke is built in to 200 V and 400 V class models with a capacity of 22 kW and higher (HD rating).

<1> Parameter can be changed during run.
<2> Setting range value is dependent on parameter C1-10, Accel/Decel Time Setting Units. When C1-10 = 0 (units of 0.01 seconds), the setting range
becomes 0.00 to 600.00 seconds.
<3> Available in drive software versions PRG: 1020 and later.
<4> Default setting value is dependent on parameter A1-02, Control Method Selection. The value shown is for A1-02 = 0-V/f Control.
<5> Parameter cannot be changed during run when parameter A1-02 = 5-PM OLV Control.
<6> Default setting value is dependent on parameter A1-02, Control Method Selection. The value shown is for A1-02 = 2-OLV control.
<7> Setting range is determined by the drive software version.
PRG: 1020 and later: 1 to B; F
PRG: 1018 and earlier: 1 to A; F
<8> Default setting value is dependent on parameters o2-04, Drive Model Selection, A1-02, Control Method Selection and C6-01, Drive Duty Selection.
<9> Default setting value is dependent on parameter C6-02, Carrier Frequency Selection.
<10> Available in drive software versions PRG: 1024 and later.

<1> Default setting value is dependent on parameter A1-02, Control Method Selection. The value shown is for A1-02 = 2-OLV control.
<2> A coasting motor may require a braking resistor circuit to bring the motor to a stop in the required time.
<3> Default setting value is dependent on parameter A1-02, Control Method Selection. The value shown is for A1-02 = 0-V/f Control.
<4> Default setting value is dependent on parameter o2-04, Drive Model Selection.
<5> Available in drive software versions PRG: 1020 and later.
<6> Parameter can be changed during Run.
<7> Default setting is dependent on parameter b5-20, PID Setpoint Scaling.
<8> Available in drive software versions PRG: 1014 and later.
<9> Default setting value is dependent on parameter o2-04, Drive Model Selection and C6-01, Drive Duty Selection.
<10> Parameter value is changed if E2-11 is manually changed or changed by Auto-Tuning.
<11> Available in drive software versions PRG: 1022 and later.
<12> Default setting is determined by A1-02, Control Method Selection
