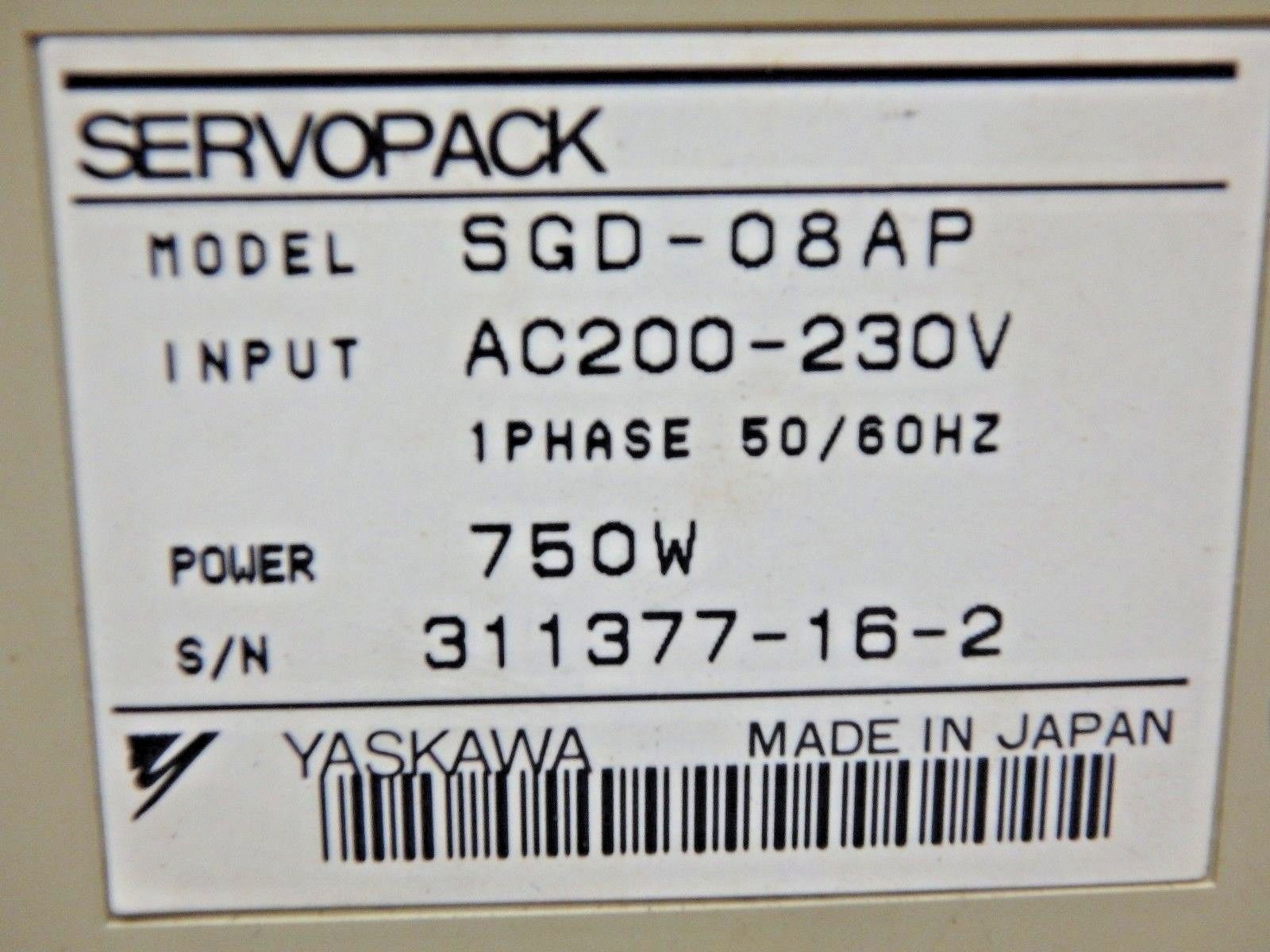

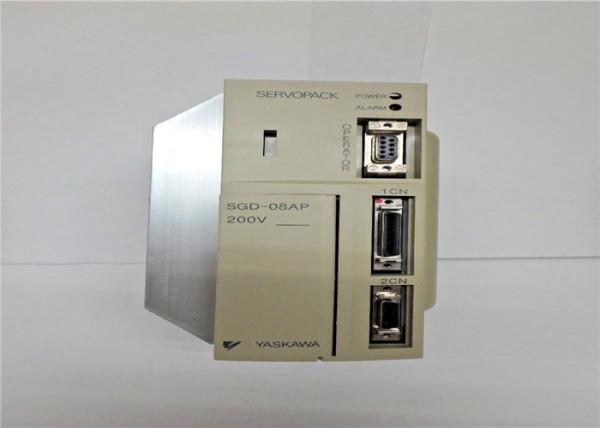

Yasawa Electric Ouput 0.87AMPS Servopack AC200 Controller 230V 750Watt SGD-08AP
DESCRIPTION
- Industrial Servo Drive
- ServoPack
- Servo Controller
SEPCIFICATIONS
YASKAWA ELECTRIC
SGD-08AP
SGD-08AP
SERVO DRIVE SERVOPACK
AVAILABLE
REBUILT SURPLUS
NEVER USED SURPLUS
REPAIR YOURS
24-48 HOUR RUSH REPAIR
2 - 15 DAY REPAIR
2 YEAR RADWELL WARRANTY
SIMILAR PRODUCTS
| SGD-04ASY53 | SGD-08AH |
| SGD-08AN | SGD-08AP |
| SGD-08APY61 | SGD-08ASY25 |
| SGD-02AP | SGD-02AS |
| SGD-02BH | SGD-02BP |
| SGD-02BS | SGD-04AN |
| SGD-04AP | SGD-04APY61 |
| SGD-04AS | SGD-04ASY52
|
Controlled system
In the previous figure, the controlled system is a movable table for which the position or speed is controlled. The movable table is driven by a ball screw and is connected to the servomotor via gears. So, the drive system consists of:
Gears + Ball Screw
This drive system is most commonly used because the power transmission ratio (gear ratio) can be freely set to ensure high positioning accuracy. However, play in the gears must be minimized.
The following drive system is also possible when the controlled system is a movable table:
Coupling + Ball Screw
When the power transmission ratio is 1 : 1, a coupling is useful because it has no play. This drive system is widely used for machining tools. Timing Belt + Trapezoidal Screw Thread A timing belt is a coupling device that allows the power transmission ratio to be set freely and that has no play.
A trapezoidal screw thread does not provide excellent positioning accuracy, so can be treated as a minor coupling device.
To develop an excellent servo system, it is important to select a rigid drive system that has no play.
Configure the controlled system by using an appropriate drive system for the control purpose.
Drive system
Also called a drive mechanism.
A drive system connects an actuator (such as a servomotor) to a controlled system and serves as a mechanical control component that transmits torque to the controlled system, orientates the controlled system, and converts motion from rotation to linear motion and vice versa.
TermΣ-V Series SGMJV, SGMAV, SGMPS, SGMGV, SGMSV, orSGMCS (Direct Drive) servomotorΣ-V Series SGDV SERVOPACKA set including a servomotor and SERVOPACK (i.e., a servoamplifier)A servo control system that includes the combination of a servodrive with a host controller and peripheral devicesAnalog voltage and pulse-train reference used for SERVOPACKinterface.MECHATROLINK-II communications reference used forSERVOPACK interface.MECHATROLINK-III communications reference used forSERVOPACK interface.SERVOPACK for which a command option module can beinstalled.
