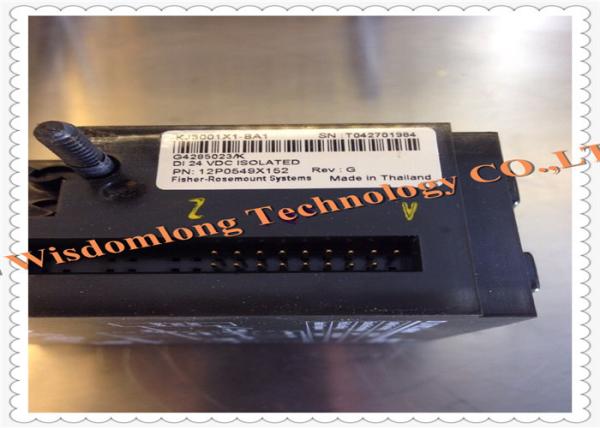

Dual Redundant Power Supply Module KJ3001X1-BA1 VE4001S2T1 12P0549X112
Both NEW and USED are available.
Details:
Redundant Power Supply Module
KJ3001X1-BA1 VE4001S2T1 12P0549X112 DI 32-Channel 24 VDC Isolated Card
a.Hazardous Atmosphere
Nemko No. 02ATEX431U
EEx nA IIC T4
b.Power Specifications
LocalBus power rating:12 VDC at 100 mA
Field circuit rating:24 VDC at 5 mA/channel
c.Environmental Specifications
Ambient Temperature:0 to 60oC
Shock:10g ½ Sinewave for 11 msec
Vibration:1mm Peak to Peak from 5 to 16Hz;
0.5g from 16 to 150Hz
Airborne Contaminants:ISA-S71.04 –1985 Airborne
Contaminants Class G3
Relative Humidity:5 to 95% Non-Condensing IP 20 Rating
Terminal block key position:B2
Note:
Refer to the product label for serial number and location and date of manufacture. Refer also to the wiring diagram on the left side of the card.
Warning:
This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P2046 "DeltaV™ Scalable Process System Zone 2 Installation Instructions".
Other installation instructions are available in the "Installing Your DeltaV™ Safety Instrumented System Hardware" manual.
d.Removal and Insertion
Field power supplied to this device, either at the field terminal or as bussed field power through the carrier, must be removed before removing or connecting the device.
This unit may be removed or inserted while system power is energized under the following conditions:
(Note:Only one unit at a time may be removed or inserted with system power energized.)
•When used with KJ1501X1-BC1 System Dual DC/DC Power Supply operating on either 24VDC or 12VDC input power, The primary circuit wiring inductance less than 23 uH, or a certified supply with an open circuit voltage, Ui of 12.6VDC and an Lo of less than 23 uH (including wire inductance).
•Non sparking field circuits MUST be deenergized before removing and inserting this product.
A terminal block fuse may NOT be removed with field power energized for non-sparking circuits.
A rotary keying system ensures compatibility between I/O cards and terminal blocks after installation is complete. The terminal block must have the keys set for the I/O card with which it is used.
e.Maintenance and Adjustment
This unit contains no user serviceable parts and should not be disassembled for any reason.
Calibration is not required.
Other Models:
| Model |
Description |
|
KJ3246X1-BA1
|
S-Series H1 with Integrated Power |
|
KJ3246X1-CA1 12P5540X022
|
H1 W/IP Simplex Terminal Block
|
|
KJ4001X1-BA1 12P0679X022
|
2 Slot Carrier
|
|
KJ4001X1-BA2 VE3051CO 12P1562X012
|
Power Controller 2 Wide Carrier
|
|
KJ4001X1-BA3 12P3378X012
|
2-WIDE CARRIER W/RED
|
|
KJ4001X1-BB1 12P0619X032
|
8 Wide I/O Carrier
|
|
KJ4001X1-BE1 VE4050S2K1C1 VE4050E1CO 12P0818X032
|
8 Wide I/O Carrier with Shield Bar |
|
KJ4001X1-CA1 12P0623X022
|
I/O Terminal Block
|
|
KJ4001X1-CB1 12P0625X052
|
Fused I/O Terminal Block
|
|
KJ4001X1-CC1 12P0733X032
|
4 Wire TX Terminal Block
|
|
KJ4001X1-CD1
|
MASS TERMINAL BLOCK 10 PIN
|
|
KJ4001X1-CE1 12P0732X062
|
MASS TERMINAL BLOCK 16 PIN
|
|
KJ4001X1-CG1 12P1812X042
|
Thermocouple Terminal Block
|
| KJ4001X1-CJ1 12P1902X012 |
32 Channel Terminal Block
|
|
KJ4001X1-DG1 12P1298X012
|
FUSED TERM PWB |
|
KJ4001X1-EA1 12P0733X022
|
4 WIRE Terminal Block
|
|
KJ4001X1-GA1 12P0830X022
|
Local Bus Right Extender Cable
|
|
KJ4001X1-GB1 12P0831X022
|
Local Bus Left Extender
|
|
KJ4001X1-GG1 12P1812X022
|
Thermocouple Terminal Block
|
|
KJ4001X1-HA1 12P0949X022
|
Local Bus Extender Cable
|
|
KJ4001X1-HB1 12P0830X072
|
Local Bus Right Extender
|
|
KJ4001X1-HC1 12P0831X072
|
Local Bus Left Extender
|
|
KJ4001X1-NA1 12P3373X012
|
DUAL RIGHT EXTENDER
|
|
KJ4001X1-NB1 12P3368X012
|
DUAL LEFT EXTENDER
|
|
KJ4002X1-BA1 VE4055S1C0 12P1727X042
|
Left 8 Wide Vertical Carrier
|
